ImpactManager RF & ID

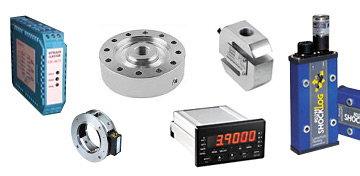

Instrumentation Components

ShockSensor ImpactManager RF & ID are access control and impact and utilization monitoring devises for material handling equipment.  These products are designed to reduce damage-related expeses due to improper operation and creat a safer work environment.

When integrated with a forklift, ImpactManager RF & ID detect impacts and record the event details, such as date, time and driver identification.  The data is then transmitted wirelessly for the RF or dowloaded through several user interface optons for the ID.  These user interfaces also assist in controlling access by ensuring that only trained or certified drivers operate the equipment.

Benefits:

  • Reduces operator, facility equipment and product damage due to impacts
  • Reduces costs associated with damage and worker injury
  • Increases operator accountability, improves driving behaviour and reduces woker injury
  • Enables compliance with OSHA by tracking operator training schedules and operator certification
  • Reinforces safe vehicle operation and procedures wihout supervisory presence
  • Creates immediate awareness of impacts by sounding an alarm or lift horn, etc...

Use ImpactManager ON:

  • Electric Forklifts
  • Internal combstion Forklifts
  • Narrow Aisle (reach) Forklifts
  • Rough Terrain Foklifts
  • Electric Pallet Forklifts
  • Walkie/Rider Forklifts
  • Order Picker Forklifts
  • Turret Forklifts, etc...


D & D’s knowledgeable staff will walk you through all your options and applications needs in the measurement, control, and automation aspect of your hi-tech machinery.

We are your source for all your measurement needs providing you with expertise. Our instrument specialists are ready with the right tools and specialized knowledge to assist you in the aerospace, automotive, industrial and research fields.

We can supply you with the following products:

  1. Data Acquisition
  2. Signal Conditioning
  3. Force Sensors / Load Cells
  4. Linear Position Sensors
  5. Pressure Sensors
  6. Torque Sensors
  7. Shock Sensor
  8. Vibration Sensors
  9. Ultrasonic Sensors



Shock Sensors



 Cylinder Control Bases

The RD 298 ShockLog is a programmable, reusable electronic, tri-axial shock recorder designed specifically to help organizations to reduce the cost of damage to goods whether in production, transit or storage.

A battery life of up to 12 months allows you to understand the entire supply chain life of your products and the conditions it experiences.  More importantly it tells you when incorrect physical handling, poor quality packaging or inappropriate temperature and humidity control will have damaged the quality of your product, your reputation and your cash flow.

The comprehensive Windows™ based software programme allows you to programme your own wake up, warning and alarm levels and frequency of data collection.  When a programmed impact level is exceeded a visual alarm will alert you as well as storing the data for future analysis.

RD298 Technical Specifications
Size: 180 x 84 x 42mm
Weight : 0.7kg
Battery: 1 x 3.6V lithium thionyl chloride. Min 8 Ah
1 x 1.5V Alkaline size C MN 1400 or equivalent
Case Material: Aluminium IP67 rating
Operating Temperature Range: Standard -20 to +70 °C
Extended Temp. -40 to +85 °C
User selectable operating ranges: Acceleration 1, 3, 10, 30 & 100g
  Velocity 1, 3, 10, 30 & 100cm/s
Wake up threshold (%of range) 5 - 95%
Warning and alarm threshold (% of range) 5 - 95%
Wake up time: 1.5 mS





Optional External Humidity, Pressure and Temperature Sensor
Humidity measuring range 0 - 100 % RH
Pressure measuring range 0 - 1.1 Bar
Temperature measuring range -40 to 85 °C





Five configurations are available to accommodate cylinder extension and retraction requirements:

CCV-F1-1 features a 10-32 (F) input port and 1/8 NPT output port. Input pressure determines the rate of cylinder extension while the cylinder's spring controls rod retraction.

CCV-F1-2 offers the combination of a Needle Valve and Quick Exhaust providing controlled cylinder movement in both directions. A built-in Needle Valve in the input port, 10-32 (F), controls cylinder extension while the 1/8 NPT Quick Exhaust in the output port allows rapid cylinder return.

CCV-F1-3 provides a 10-32 (F) input port and built-in Quick Exhaust with 1/8 NPT output port. Input pressure controls the cylinder extension and the Quick Exhaust allows rapid cylinder return.

CCV-F1-4 features a built-in Needle Valve in the input port, 10-32 (F), for controlled cylinder extension. The cylinder's spring controls rod retraction.

CCV-44-4 features 1/8 NPT (F) input and output ports. A built-in Needle Valve in the input port provides controlled cylinder extension while the cylinder's spring controls rod retraction.

Features:

• Allows rapid cylinder return
• Direct cylinder mount
• Simplifies component installation
• Compact valve package
• Anodized or plated for corrosion resistance






Pneumatic Solutions for Transportation Applications



Bearings

Air bag suspension valves

Pneumatic controls can be found throughout the transportation industry in a variety of applications involving automobiles, trucks, buses, motorcycles, trailers and ATVs. From our standard 4-way control valves to customized air bag suspension valves, Pneumadyne’s pneumatic components can be found in applications such as:

  • Motorcycle & ATV Air Ride Suspension Systems
  • Door Opening Systems on Buses
  • Garbage Truck Lift Mechanisms
  • Transmission Shift Control Systems
  • Truck & Car Seat Lumbar Supports
  • RV Leveling Systems

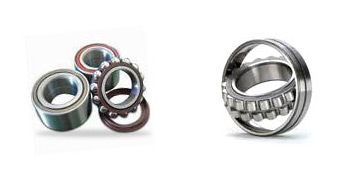

Bearings are mechanisms that permit constrained relative motion between two or more components for rotational or linear movement. These instruments are classified broadly according to the movements they facilitate along with their principle of operation and by the directions of applied loads they can handle. Allow our expertise to guide you through this diverse field of mechanical modules in order to make the precise selection for your needs from our vast inventory.
