D & D AIR & HYDRAULIC COMPONENTS INC.

TopRing

http://www.topring.ca

TOPRING offers solutions tailored to the needs of the industrial, hardware and the automotive markets. Product lines are developed specifically to meet the specific demands of each of these markets. TOPRING enables users to use compressed air efficiently.

Compressed Air Distribution Systems

• Series 05 AIR LINE – Nylon piping

• Series 06 – Aluminium piping

• Series 07 QuickLINE – Aluminium piping

Topring compressed air piping systems in either Nylon  or Aluminium are put together using non-traditional means such as push-in fittings or compression fittings. These assembly methods speed up the installation process by as much as a factor of 4, saving on installation costs that often include more labour than materials.

The choice of Nylon or Aluminium air piping system provides great improvements over traditional conventional materials, such as Iron, Galvanized Steel and Copper, by eliminating corrosion problems that plague traditional systems. This ensures much longer useful life, definite improvements in flow and reductions in operating costs.

Topring air systems are also very light, reducing the time and effort required to complete installations and reducing strain on workers.﻿

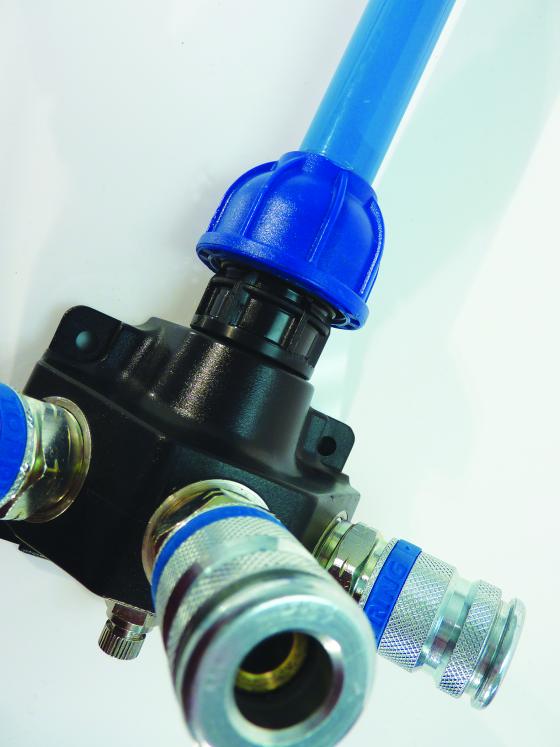

Manifolds

Composite Manifolds
Aluminum Manifolds - 3 Outlets
Brass Bar Manifolds
Aluminum Bar Manifolds

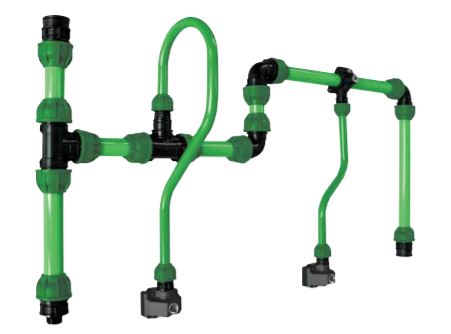

Nitrogen Distribution Systems

Exclusively for the use with Nitrogen

• Ideal for supplying nitrogen, widely used in tire repair workshops and
on assembly lines

• The green color of the pipe and fitting rings make the lines easily
distinguishable from other networks used in the distribution of fluids,
thus avoiding the need of painting he pipes at the time of installation.

Applications:

AUTOMOTIVE INDUSTRY
The inflation of tires with nitrogen rather than air maintains the tire
pressure for a longer period of time. This reduces the risks associated
with underinflated tires and reduces fuel consumption.

FOOD INDUSTRY
Nitrogen is used at different stages of production, handling and
packaging of beverages and foods. In winemaking, the use of nitrogen
prevents oxidation of the wine and reduce the use of additives.

GENERAL INDUSTRY
Nitrogen is widely used in metal heat treatment: annealing,
hardening, tempering, welding, brazing or soldering.

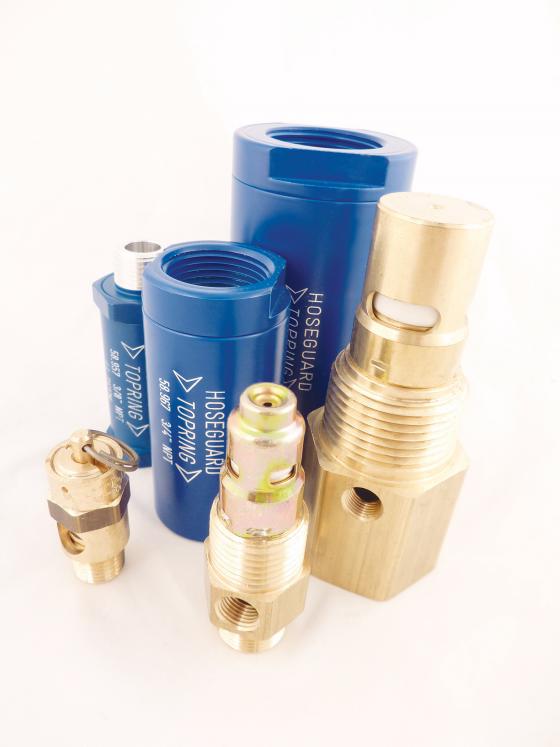

Check Valves & Safety Valves

S58 Hoseguard Anti-Hose Whip Safety Valves
Hoseguard safety valves cut instantly the air supply in case of an air pipe or hose breakage to protect users.
S58 ASME Safety Valves
Allows compressed air to escape effectively and safely in the event of an overload or failure of the pressurized system.
Check Valves S58 - Prevents air from returning to the compressor pump when it’s not in operation.

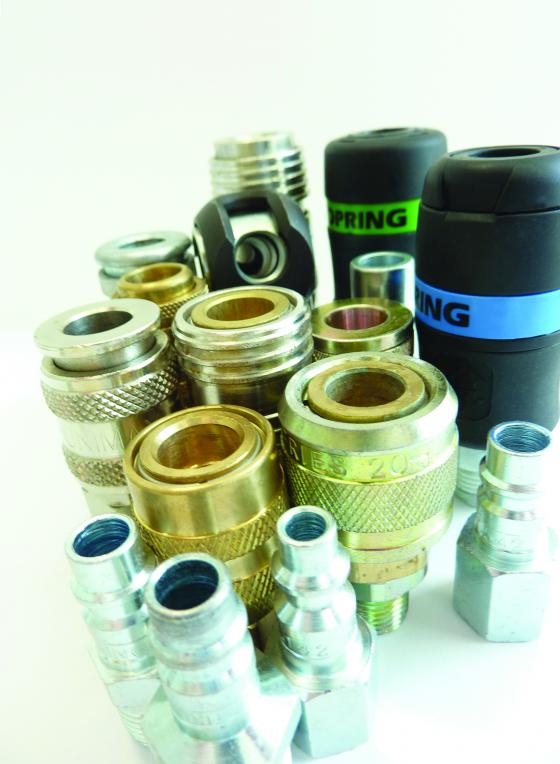

Quick Couplers

ACCIDENT PREVENTION

AVOIDING DANGEROUS HOSE WHIPS

ZERO PRESSURE DISCONNECT COUPLERS
These couplers are safe and easy to connect and disconnect. Two-step disconnect procedure shuts off air supply and releases downstream air pressure before the plug can be removed from the coupler. Hose whip is thereby prevented.

ZERO PRESSURE CONNECT/DISCONNECT COUPLERS This coupler style allows connection and disconnection at zero pressure. Connector is securely locked before valve is opened, making connection easy and safe. Downstream line is then exhausted before connector can be removed, eliminating hose whip.

ACCIDENTAL DISCONNECTIONS

DRAG GUARDS
There is an integrated front flange designed to protect the retractable sleeve and minimize accidental disconnection when the coupler is dragged across the floor or over obstructions.

CONNECTION METHOD

AUTOMATIC COUPLERS
The plug is simply pushed into the coupler to connect; the coupler sleeve automatically retracts. The sleeve must be manually retracted to disconnect the plug. Automatic couplers are faster and easier to operate.

MANUAL COUPLERS
These couplers require manual retraction of the sleeve in order to connect or disconnect the plug. This style offers the greatest economy and is relatively safe. It requires two hands to connect.

ERGONOMICS
TOPQUIK quick couplers are very light compared to metal quick couplers offering better ergonomics.

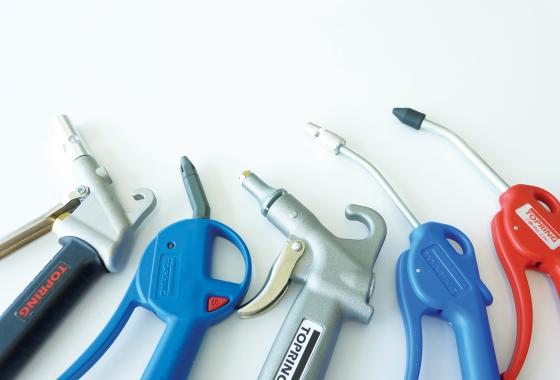

Air Guns & Blow Guns

WORKING WITH A QUALITY BLOW GUN IS NOT ONLY COMMON SENSE, BUT A SAFE INVESTMENT

Wherever compressed air blow guns are used for cleaning there is a real danger of injury to workers and damage to equipment caused by particles being ejected and blown into the air. This is why the following OSHA regulations pertaining to output pressure, chip guarding and noise are of particular relevance to users of safety air guns and spray equipment.

S60 Compact Blow Guns
Compact blow guns allow precise control of the air jet.

S60 Ergonomic Blow Guns
Wide range of ergonomic polymer blow guns with safety or non-restricted nozzles options.

S60 High Performance Blow Guns Heave-duty high flow blow guns for maximum blowing power.
